These days, XLR cables are the most popular cables that can deliver balanced audio signals by reducing the noise from audio. It will preserve the original sound and work wellfor long distances and nearby electronic devices. These cables possess three pins and a circular shaped connector so that you can connect microphones toother audio devices.
To know more about it, keep reading the article! Below we are going to share a complete guide about the XLR cable.

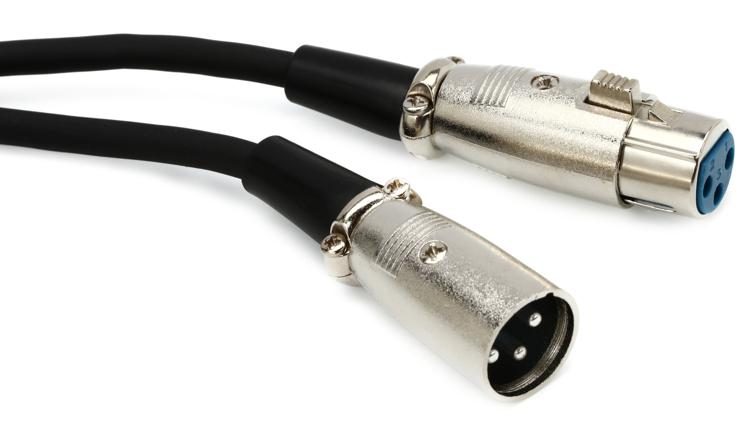

XLR Cables
XLR cables can be defined as balanced cables. These cables’ structure is straightforward as they contain circular connectors along with three pins that are positive, negative, and the ground.
XLR cables are similar to the TRS (Tip Ring Sleeve) cables. Hence, the main difference between these two cables is the connector because the TRS cables are identical to the standard-jack cables. Pin 1 is used as the facing male connector and facing the hole on the right side as the female connector,but still, XLR cables provide the best sound quality.
How Does An XLR Cable Work?
XLR cables’ mechanism is effortless as the XLR deliver positive signals when two balanced devices are connected, and negative audio signal and ground signals are also provided at the same time. However, the positive sound signals are the same as the negative sound signals, except when they are inverted.
If there is any observed electrical interference or any unbalanced device is connected to the cables then noise disturbance will be observed both in positive and negative sound signals. When these positive and negative sound signals get connected to the balanced device, one of the signals gets inverted at the end of the chain. So, generally, both of these audio signals are identical in every way.
Furthermore, the noise disturbance of the audio signals has been inverted, and it is no more. Because when the inverted noise is mixed up with the original noise, they cancel each other.The only thing left is the original audio sound. Although the mechanism and working of XLR cables are relatively simple, you need to understand it so that you can utilize it properly. Not connecting these cables properly will not provide you with your desired sound quality.
Uses Of XLR Cables
One of the most vital benefits of these XLR cables is that they are balanced cables. And due to this feature, these cables can be utilized for the recording studio and live audio applications. For instance, if a Personal Address (PA) sound mixing board is about 25 feet away from the audio band that makes it amplifying, XLR is utilizedfor that purpose.
Besides, XLR cables are also used to connect the microphones. Microphones work when a suitable power source is provided. Still, some of the mixing boards also contain a power source termed as “Phantom Power”. XLR cables also work to give this phantom power from the mixing board to the microphones. But, the majority of cables are not able to provide this feature.
Other Considerations
You should know about the great XLR cables because they can only provide balanced audio signals only when both ends of the device’s signals are also balanced. If any of the audio devices connected in the chain are unbalanced, the whole audio signal will become unstable.
Therefore, always buy from the manufacturers that assure that the device is correctly balanced so that there is no sound disturbance.
Conclusive Remarks:
XLR cables can provide you with the best sound quality with no noise or other sound issues. All it needs that the connected devices should be balanced so that balanced sound can be created. So, always buy quality cables and use them accurately!
